ATC acoustic
Lượt xem: 1788

Trong kho : Còn hàng

Bảo hành : 12 tháng

The hybrid design incorporates a 150mm bass cone on to which is grafted a 75mm soft dome. The magnet assembly utilises ATC’s unique “SL” technology which greatly reduces distortion in moving coil drive units by a very significant 12-15dB (3rd harmonic). To minimise Time Domain Distortion both dome and cone are made from acoustically “dead” polyester wave material doped with ATC’s own formulation.

Read More

Đại lý bán Mua ngay
Liên hệ giá tốt nhất

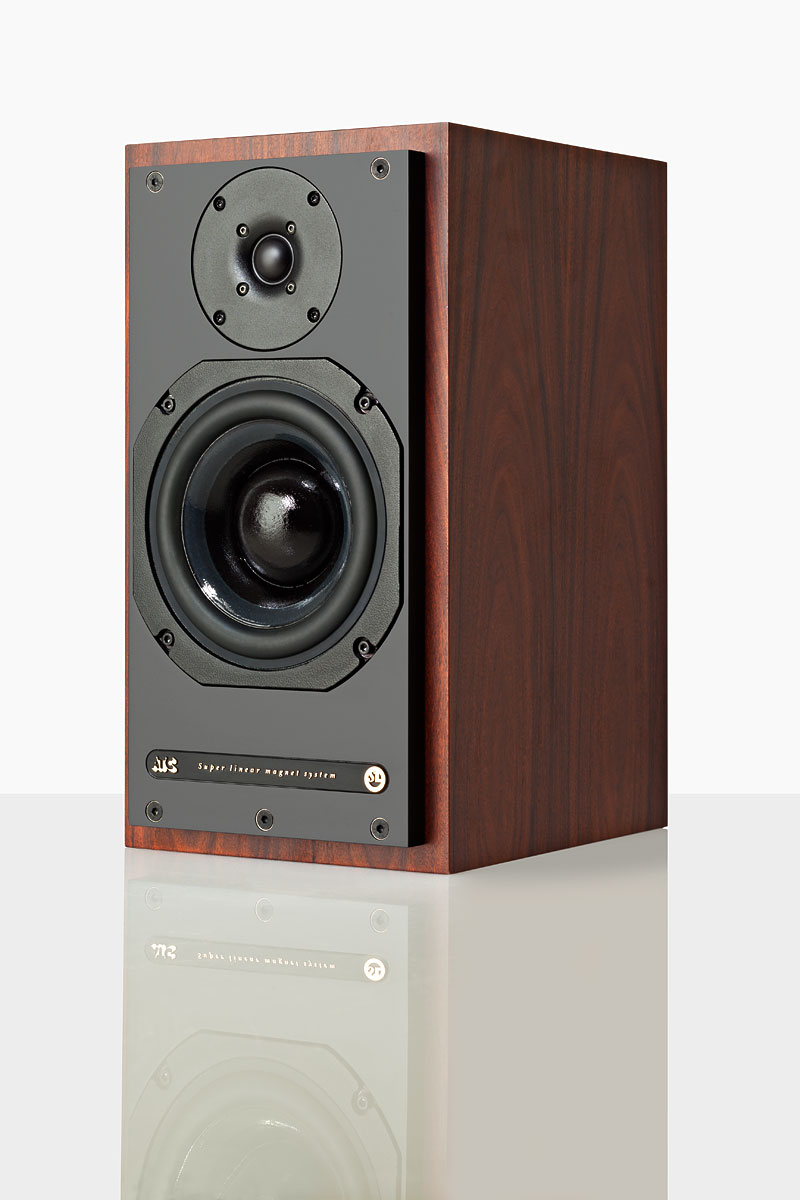

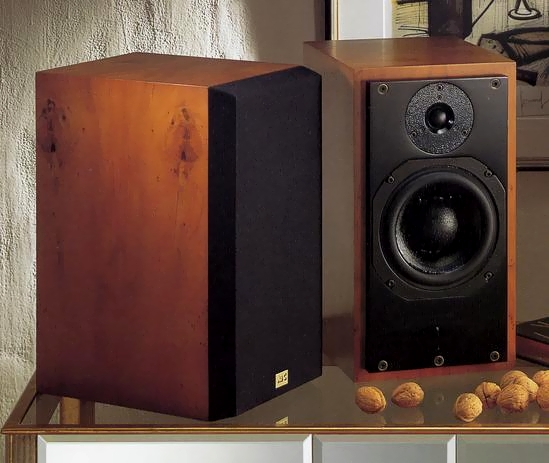

SCM20

Not only does the SCM20SL reproduce bass with remarkable articulation and authority, it also has outstanding mid-band clarity, incredible dynamic range, and awesome power handling.

The active tower version (SCM20ATSL) is powered by the ATC “Grounded Source” Bi-amplifier. The bass/mid is driven with 200 watts, while the tweeter has 50 watts of class “AB” power.

Both amplifiers feature momentary gain reduction circuitry which both protects drive units and prevents unpleasant sounds from overdrive.

Accompanied by either ATC SCA2 or CA2preamp the SCM20AT will out perform any other combination in its price range any many costing far more.

An all time classic still available and in any veneer to special order.

Drivers: HF 25mm, Mid 75mm, LF 150mm
Frequency Response -6dB: 60Hz – 20kHz
Matched Response: ±0.5dB
Dispersion: ±80° Coherent Horizontal ±10° Coherent Vertical
Max SPL: 108dB
Crossover Frequency: 2.8kHz
Input Connector: Bi-wire posts
Recommended Amplifier Power (see ATC SIA2-150): 50-300 Watts
Cabinet Dimensions(HxWxD): 440x239x333mm
Weight: 22.7kg
