Trong kho : Còn hàng
Bảo hành : 12 tháng
Giá bán : 36.000.000đ

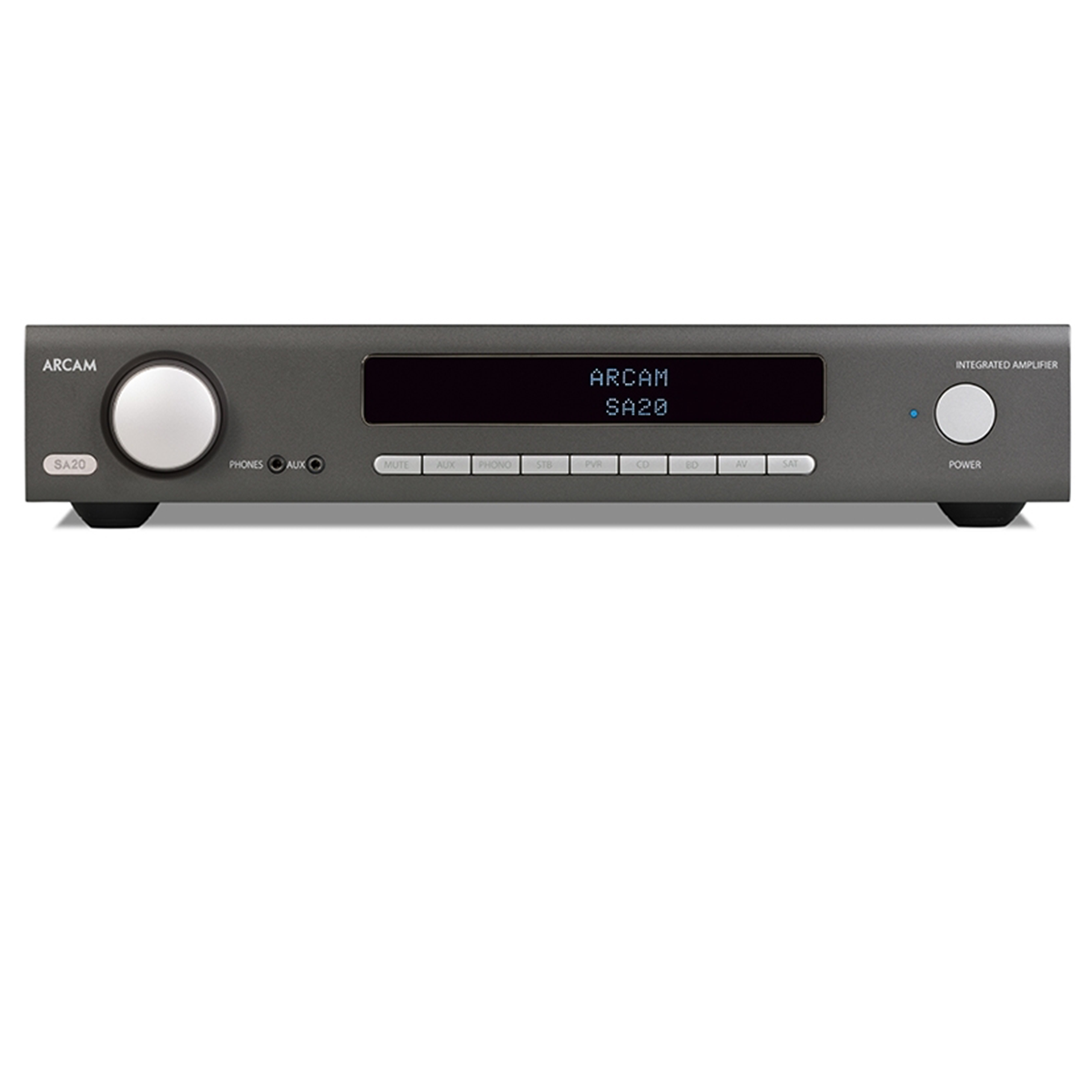

SA20
There are two frequent problems with hi-fi amplifiers. Class A, the traditional audiophile’s choice, uses a single power supply constantly running at full capacity, even when there’s no signal coming through. Great for reproducing those subtle details at low levels however struggles to provide extreme power when needed.
Class A/B, the most common amp class, switches between the two internal amplifiers, one for each half of the waveform. Far more efficient but often a recipe for crossover distortion, since those low-level details we crave can get lost within any mis-match between the two switching over.
Class G is essentially a hybrid amplifier, utilising Class A specifically for low-level signals, but when required switching in an additional power supply to power those larger sections of the waveform.
PRODUCT DETAILS
- Class G amplification for impeccable sound and efficiency
- 90W of power per channel
- 5 analogue inputs including phono
- 3 digital inputs
- 32-bit DAC,Sabre ESS9038K2M
- Full I/P control
- Total harmonic distortion + noise = 0.003%
Specifications
| Continuous power output (0.5% THD), per channel | ||
| Both channels, 8Ω, 20Hz—20kHz | 90W | |
| Both channels, 4Ω, at 1kHz | 150W | |
| Harmonic distortion, 80% power, 8Ω at 1kHz | 0.002% | |
| Analogue Inputs | ||
| Phono (MM) cartridge: | ||
| Input sensitivity at 1kHz | 5mV | |
| Input impedance | 47kΩ + 100pF | |
| Frequency response (ref. RIAA curve) | 20Hz – 20kHz ± 1dB | |
| Signal/Noise ratio (A-wtd) 50W, ref. 5mV input | 80dB | |
| Overload margin, ref. 5mV at 1kHz | 21dB | |
| Line Inputs: | ||
| Nominal sensitivity | 1V | |
| Input impedance | 10kΩ | |
| Maximum input | 6Vrms | |
| Frequency response | 20Hz – 20kHz ± 0.2dB | |
| Signal/Noise ratio (A-wtd) 50W, ref. 1V input | 106dB | |
| Digital Inputs | ||
| DAC | ESS9038K2M | |
| Frequency response | 20Hz - 20kHz ± 0.05dB | |
| Total harmonics distortion + Noise | 0.0007% | |
| Signal/Noise ratio (A-wtd) | 115dB | |
| Supported sample rates | Optical | Coaxial |
| 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz | 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz | |
| Bit depth | 16-bit – 24-bit | |
| Pre-amplifier output | ||
| Nominal output level | 630mV | |
| Output impedance | 230Ω | |
| Headphone output | ||
| Maximum output level into 600Ω | 5Vrms | |
| Output impedance | 1Ω | |
| Load range | 16Ω – 2kΩ | |
| General | ||
| Mains voltage | 110–120V or 220–240V, 50–60Hz | |
| Maximum power consumption | 500W | |
| Dimensions W x H x D (including feet, control knob and speaker terminals) | 433x87x323mm | |
| Weight (net) | 9.2kg | |
| Weight (gross) | 11.1kg | |
