The Lexicon DD-8 redefines the state-of-the-art for multi-room distributed audio. Taking advantage of HARMAN’s pioneering DriveCore™ amplifier technology, the DD-8 packs eight channels of 125W into a single rack space.

Read More

Liên hệ giá tốt nhất

DD-8

The foundational DriveCore circuitry seamlessly integrates the amplifier drive stage into the power output stage fusing everything into a chip the size of a dime. With five patents applying to the advanced feedback, modulation and output stage technologies, DriveCore’s front-end drive circuits leverage the inherent efficiencies of Class D designs while delivering the audiophile performance of advanced AB designs.

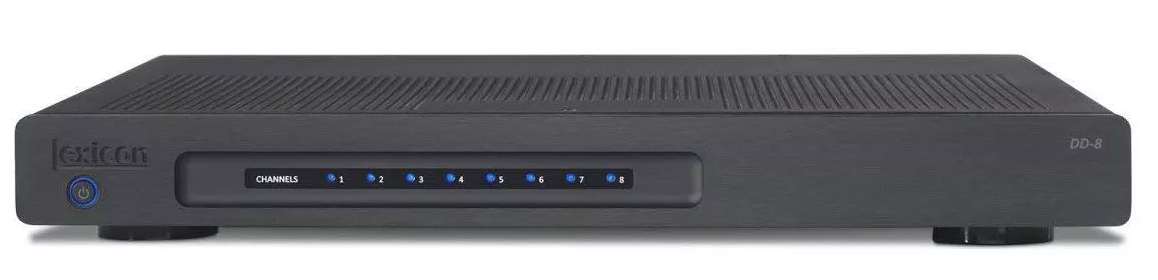

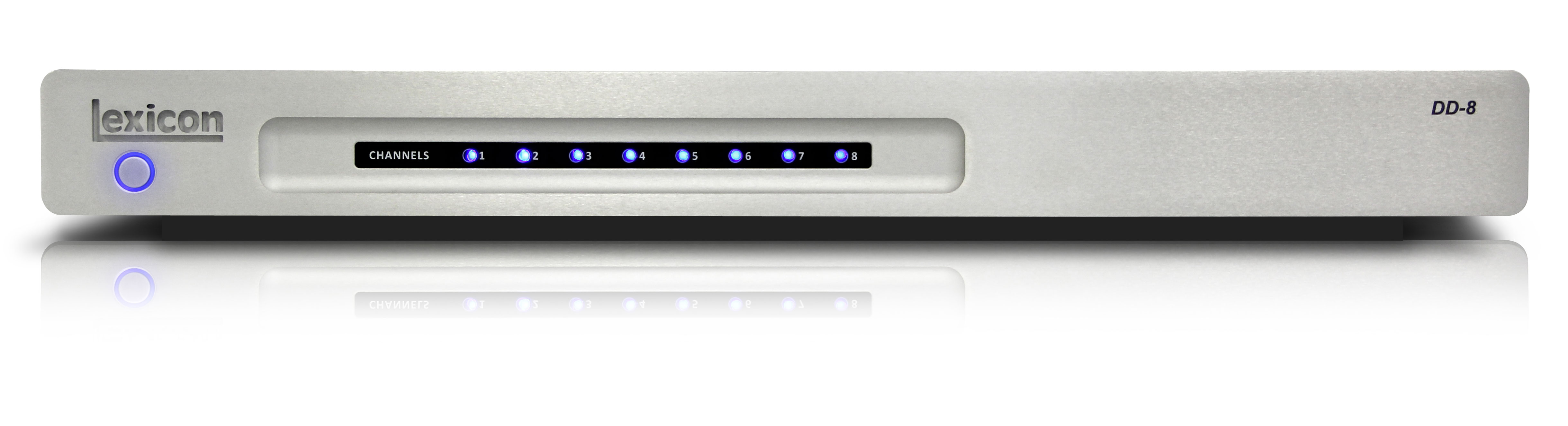

Lexicon DD-8

The 90%+ efficiency of the DriveCore stage means everything stays cool and no fan is required so your equipment racks stay ultra-quiet. Plus the DD-8 meets the future 0.5W low power consumption ratings and in fact uses less power during normal operation than many traditional amplifiers do at idle. While this much efficiency and power is indeed impressive, it is nothing without control and in this respect the DD-8 delivers with a full-complement of features including local and bus inputs, stereo/mono selection, channel output level controls and system triggers.

As an added bonus or attribute of the DD-8, not only does the amplifier redefine multi-room distributed audio, the amp is also a highly recommended and suitable option for multi-channel or home theater applications.

DD-8 Highlights

  • Multi-patented DriveCore Amplifier Technology
  • 8 channels each with 125W into 8-ohms, All Channels Driven
  • High-efficiency, Quiet Convection-cooled Design
  • Local/Bus RCA Input Selection and Independent Channel Output Level Controls
  • 12V Trigger Input/Outputand Signal-sensing Channel Inputs
  • Short-circuitand Thermal Protection Circuitry



Specifications

Frequency Response 20Hz-20kHz +0/-1.5dB
Input Impedance 100K ohms typical
Input Sensitivity 1.12 volts for 125W out into 8 ohms
Height 2.1" (5.4cm) w/ feet / 1.7" (4.5cm) w/out feet (1 rack space)
Width 17.3" (43.8cm)
Depth 14.9" (37.8cm)
Weight 9.2 lb (4.2kg)

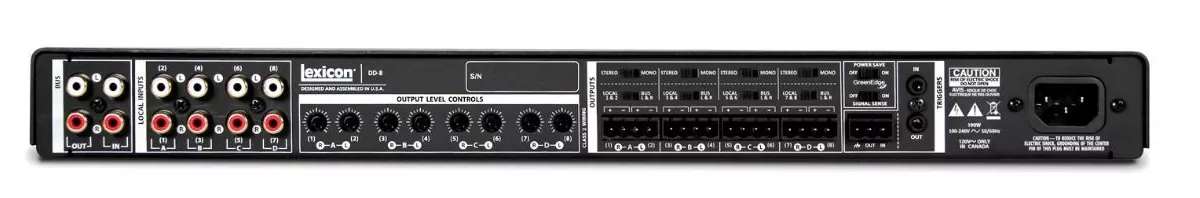

Communication and Control 12V DC Trigger In/Out (3.5mm and Phoenix)
Inputs Bus and Local L/R RCA jacks
Rated Output Power Into 8 Ohms 125W RMS per Channel from 20Hz-20kHz, All Channels Driven
Signal-to-Noise Ratio < -105dB Below Rated Full Power A-weighted
Total Harmonic Distortion (THD) Less than 0.05% at Full Rated Power 20Hz-20kHz
Gain 29dB
Power Requirements 100-240VAC 50/60Hz 190W
Speaker Connections 4-pin Phoenix-type Connectors
Included Accessories Rack Ears and Mounting Hardware
