The Lexicon RV-9 Class G Immersive Surround Sound AVR brings the private cinema sensory experience to new heights. With Dolby ATMOS and DTS:X 3D surround sound processing, Dirac room EQ, Logic7 Immersion, and plenty of responsive class G power; the RV-9 delivers a powerful, sensory rich experience with exceptional clarity.

Read More

Đại lý bán Mua ngay
Liên hệ giá tốt nhất

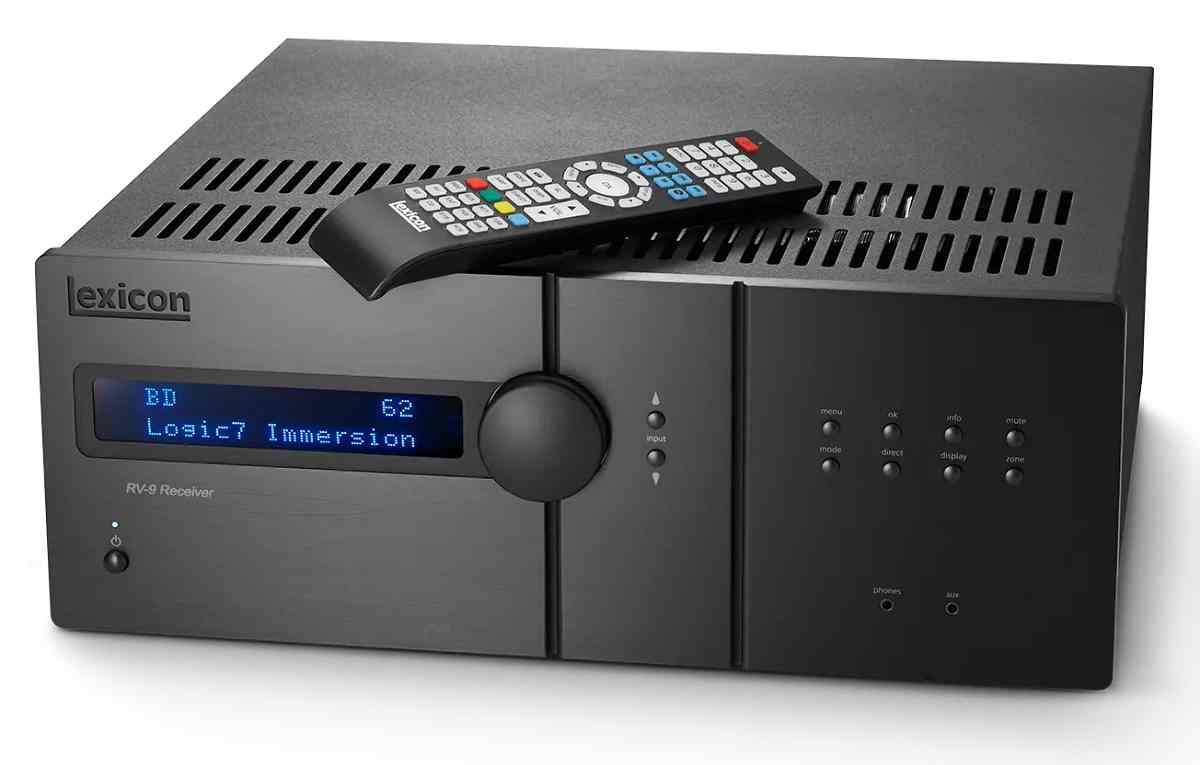

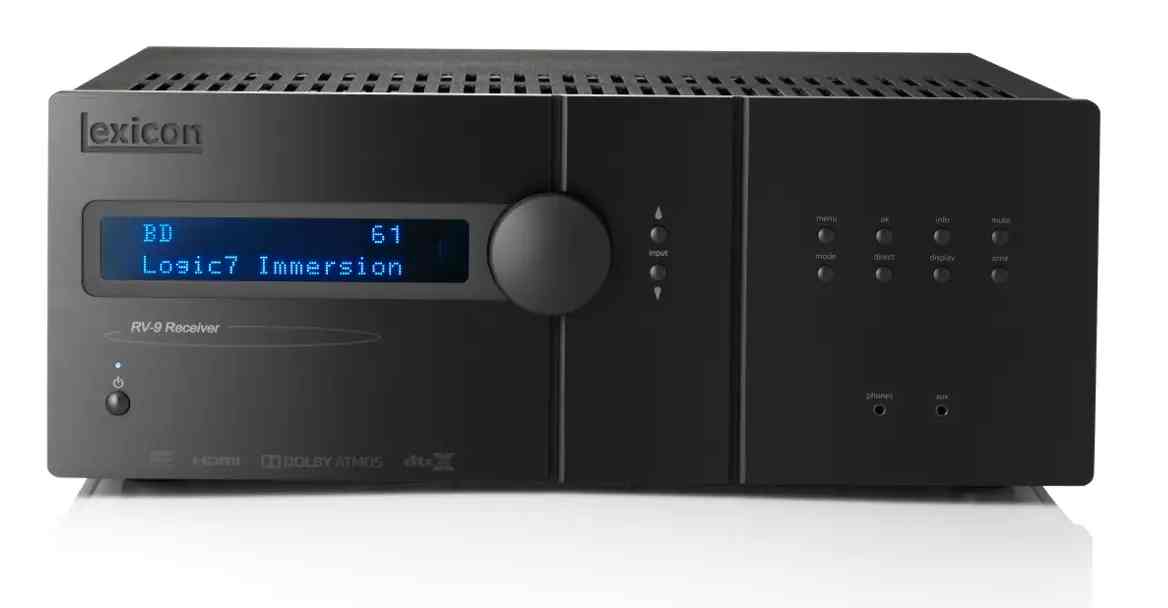

RV9 AV Receiver

Everything you need - done right.

The Lexicon RV-9 was designed to ensure that the most important components of a premium AV system were executed with maximum effectiveness. Superfluous connections and features were eliminated and resources focused to maintain best in class audio and video signal integrity and processing, as well as uncompromised Class G amplification on all channels, ensuring exceptional transparency even with the most demanding program material. The video and audio stages are designed for current and upcoming technologies. HDMI2.0a with HDCP2.2 4K "Ultra HD" and 3D video capability as well as Dolby Vision compatibility are built in.



An audiophile grade 24Bit /192kHz DAC, Dirac room equalization, exceptional dynamics and low distortion ensure pristine sound for music and movies. The Harman proprietary Logic 7 Immersion™ up mixer allows content to envelop the listener with a rich and natural three dimensional sound. Flexible configuration, Spotify Connect, and a zone 2 with audio, 4K video, IR control, triggers and power option, make the RV-9 an excellent choice for a broad range of applications.



Lexicon RV-9 Highlights

  • Logic7 Immersion natural sound upmixer
  • Dolby Atmos & DTS:X with 11.1 decoding and 7.2.4 outputs
  • IMAX Enhanced
  • DTS Virtual:X
  • Dolby Vision compatible
  • 4K (UHD) HDMI2.0a with HDCP2.2 in Main and Zone 2
  • 7 HDMI inputs, 3 HDMI outputs, ARC compatible
  • Dirac Live® for Lexicon room correction
  • Spotify® Connect enabled
  • Cirrus CS42528 audiophile DAC
  • Class G power amplification

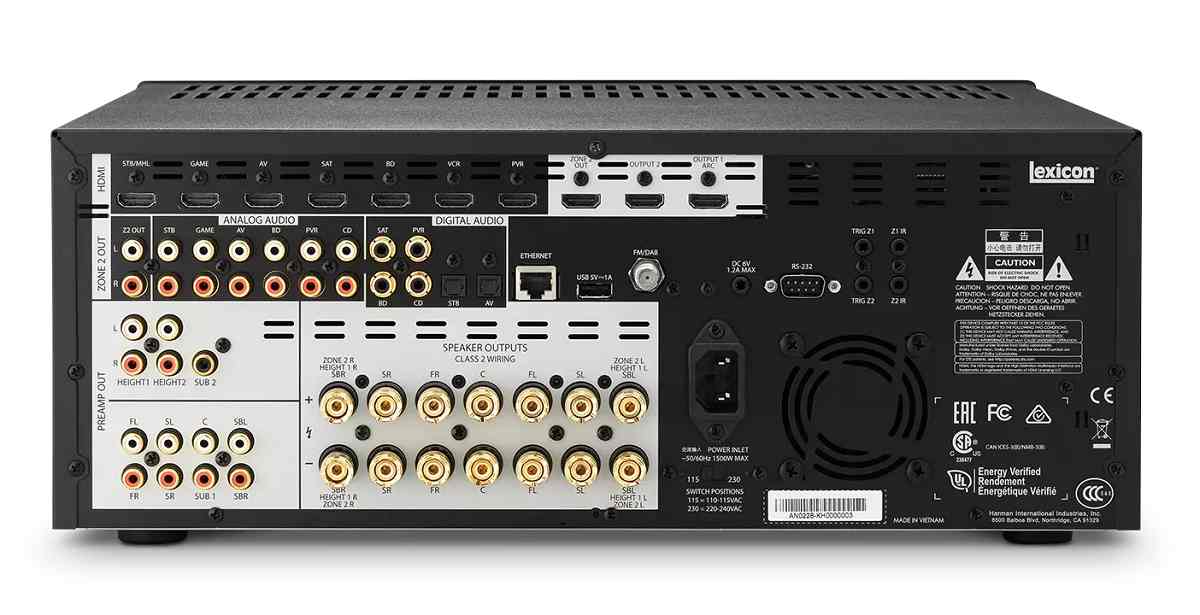

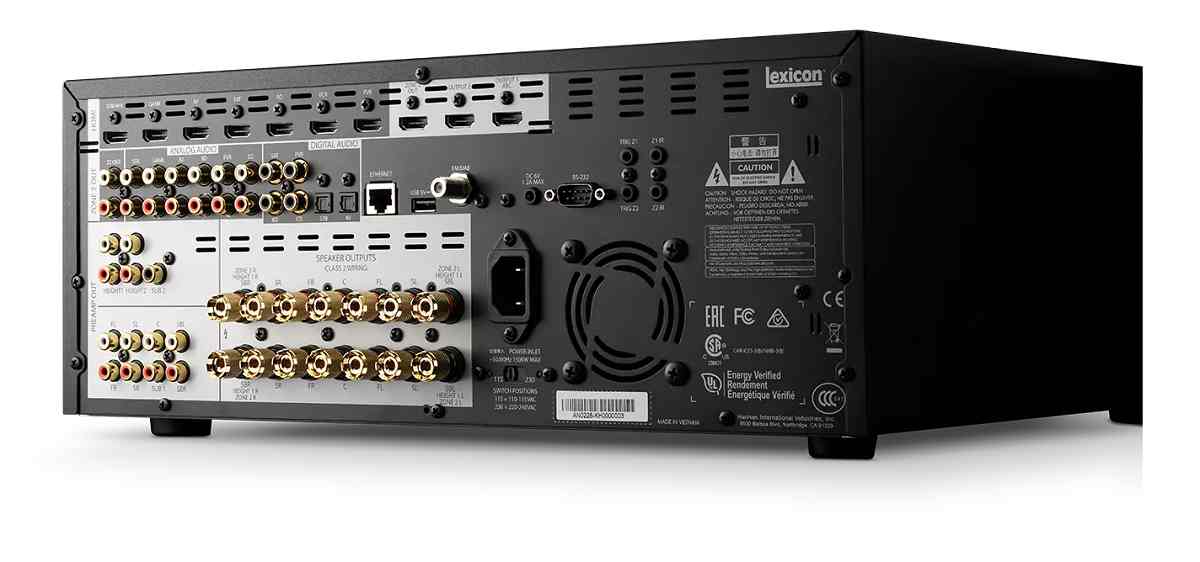

  • Rear panel ethernet, RS232, Main and Z2 IR and triggers
  • Free MusicLife iOS UPnP and control app
  • Independent volume control of sub outputs

Specifications

General Specifications
Continuous power output, per channel 8Ω/4Ω
2 channels driven, 20Hz ‑ 20kHz <0.02% THD 120W/200W
2 channels driven, 1kHz 0.2% THD 130W/210W
7 channels driven, 1kHz 0.2% THD 100W/180W
Residual noise & hum (A-wtd) <0.15mV
Mains voltage 110–120V or 220–240V, 50–60Hz
Power consumption (maximum) 1.5kW (Thermal dissipation approx. 5200 BTU/hour)
Power consumption (idle, typical) 100W (Thermal dissipation approx. 340 BTU/hour)
Power consumption (standby) <0.5W
Dimensions
W x D (including speaker terminals) x H (including feet) 433 x 425 x 171mm
Weight (net) 16.7kg
Weight (packed) 20.0kg
Audio Interface
Preamplifier outputs
Nominal output level 1V RMS
Output impedance 560Ω
THD+N (20Hz—20kHz) -100dB
Audio Output
Headphone output
Maximum output level into 32Ω 2Vrms.
Output impedance <5Ω
Audio Input
Stereo line inputs
Maximum input 4.5V rms
Nominal sensitivity 1V, 2V, 4V (user adjustable)
Input impedance 47kΩ
Signal/noise ratio (A-wtd ref 100W) normal/stereo direct 100dB/120dB
Frequency response 20Hz—20kHz } 0.1dB
