No 515 Turntable

Mark Levinson № 515 Turntable

Mark Levinson Introduces the № 515 Turntable with highly damped vinyl-wrapped MDF and aluminum sandwich main chassis a gimbal-mounted, 3D-printed tonearm.

At CES 2017, Mark Levinson by HARMAN today introduced the № 515 Turntable, designed for the discriminating analog music lover. Designed and built in partnership with industry-leader VPI Industries, the № 515 Turntable is handcrafted in the USA, and is the first turntable worthy of the Mark Levinson name.

The № 515 is the perfect complement to the Pure Phono stage included in the recently released № 526 and № 523 pre-amplifiers. A premium-caliber turntable, the № 515 leverages superior technologies and craftsmanship from VPI Industries to deliver performance, features and appearance unique to Mark Levinson.

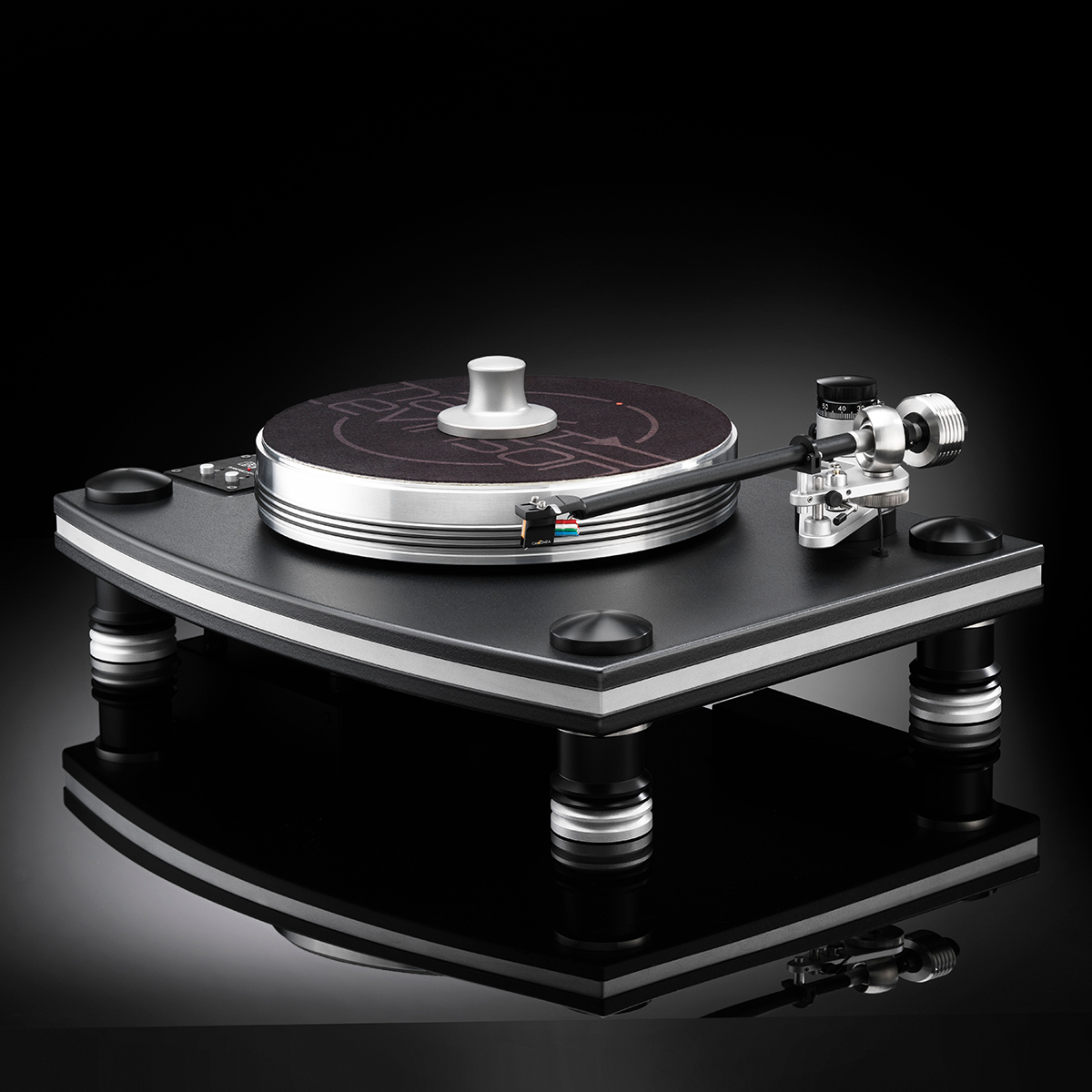

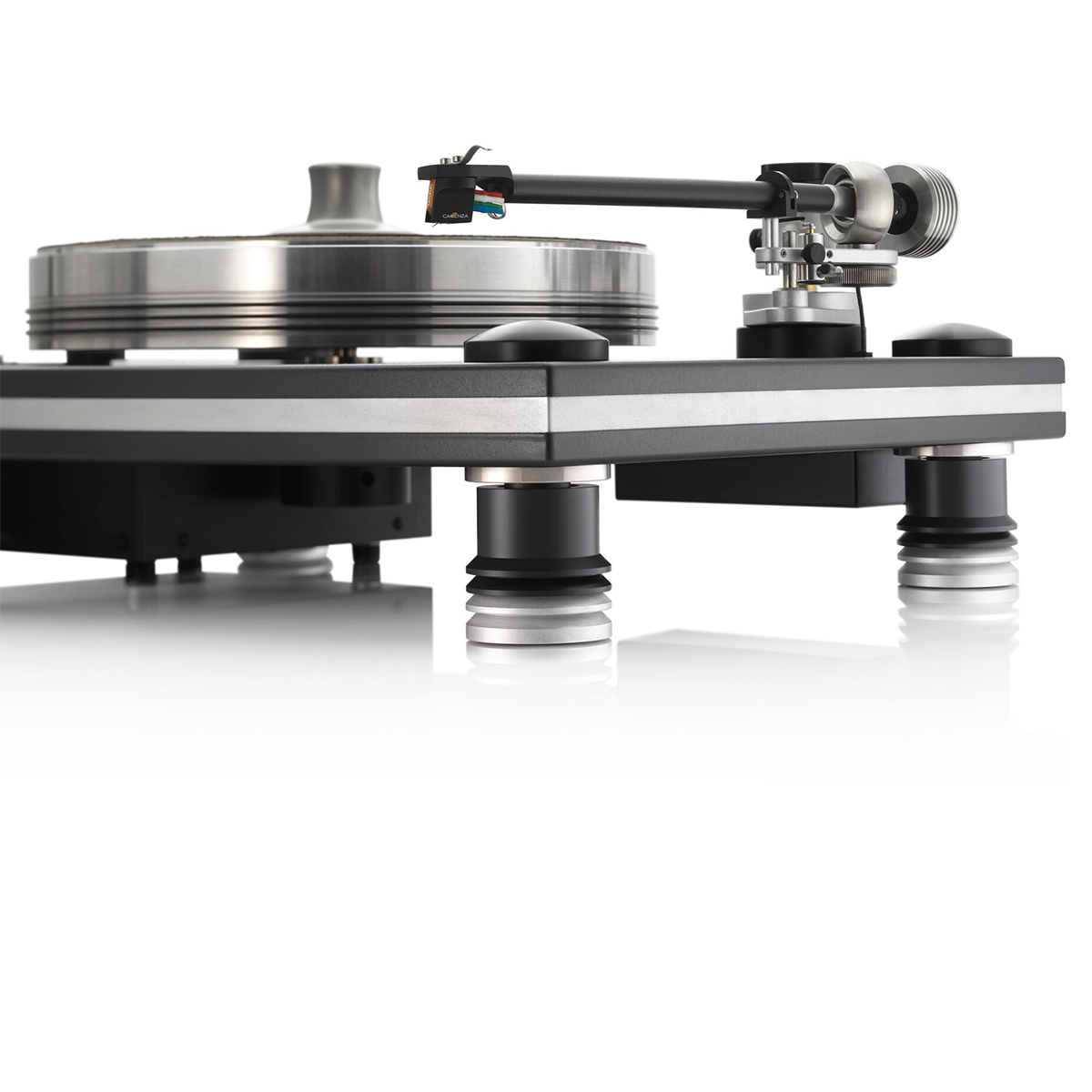

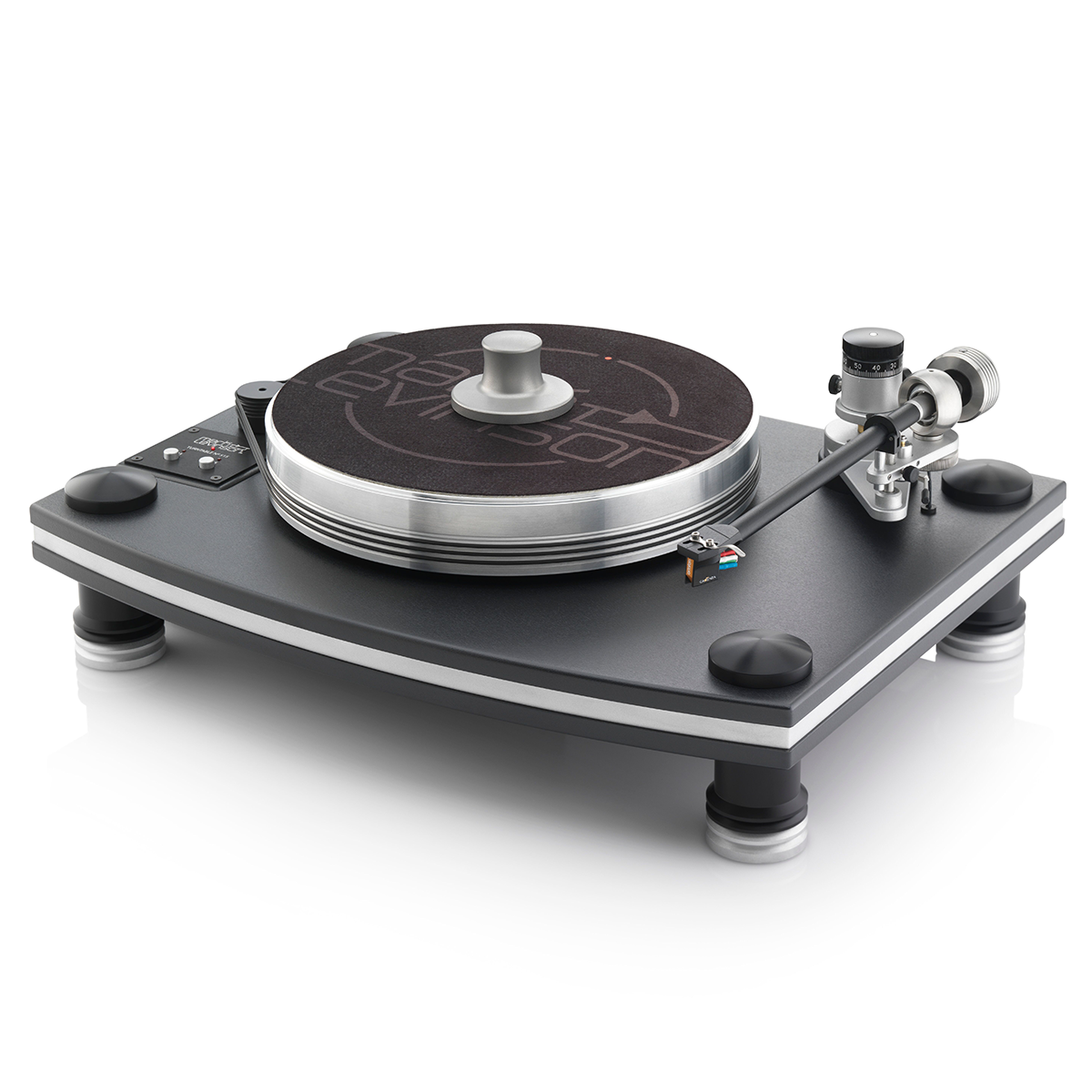

 The № 515 is based on a highly damped vinyl-wrapped MDF and aluminum sandwich main chassis. The chassis is supported by machined Delrin and Aluminum Mark Levinson feet with a vibration-damping polymer core. The 20-pound Aluminum platter rotates on an inverted bearing, which employs a hardened stainless steel shaft spinning in a phosphor bronze bushing for maximum rotational accuracy.

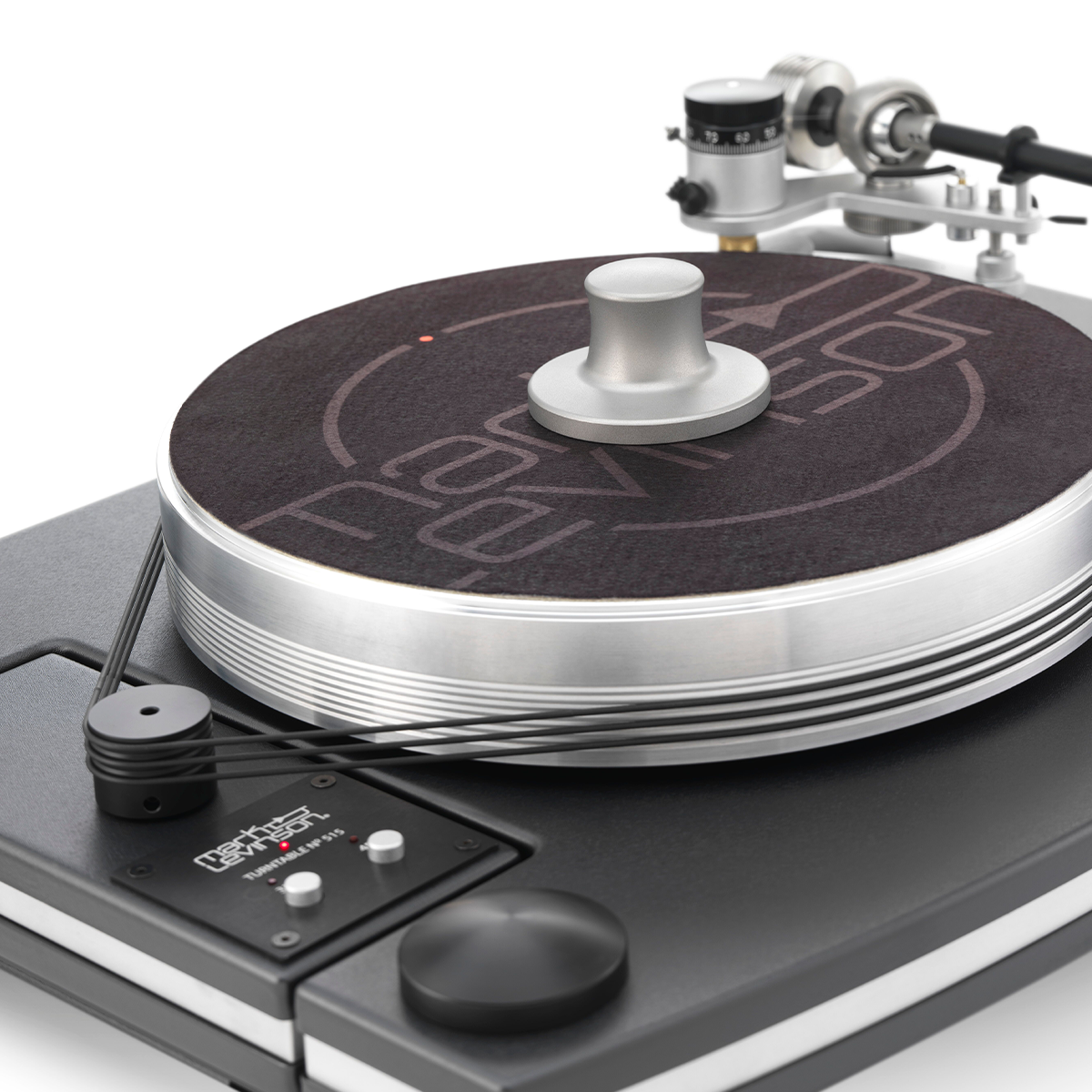

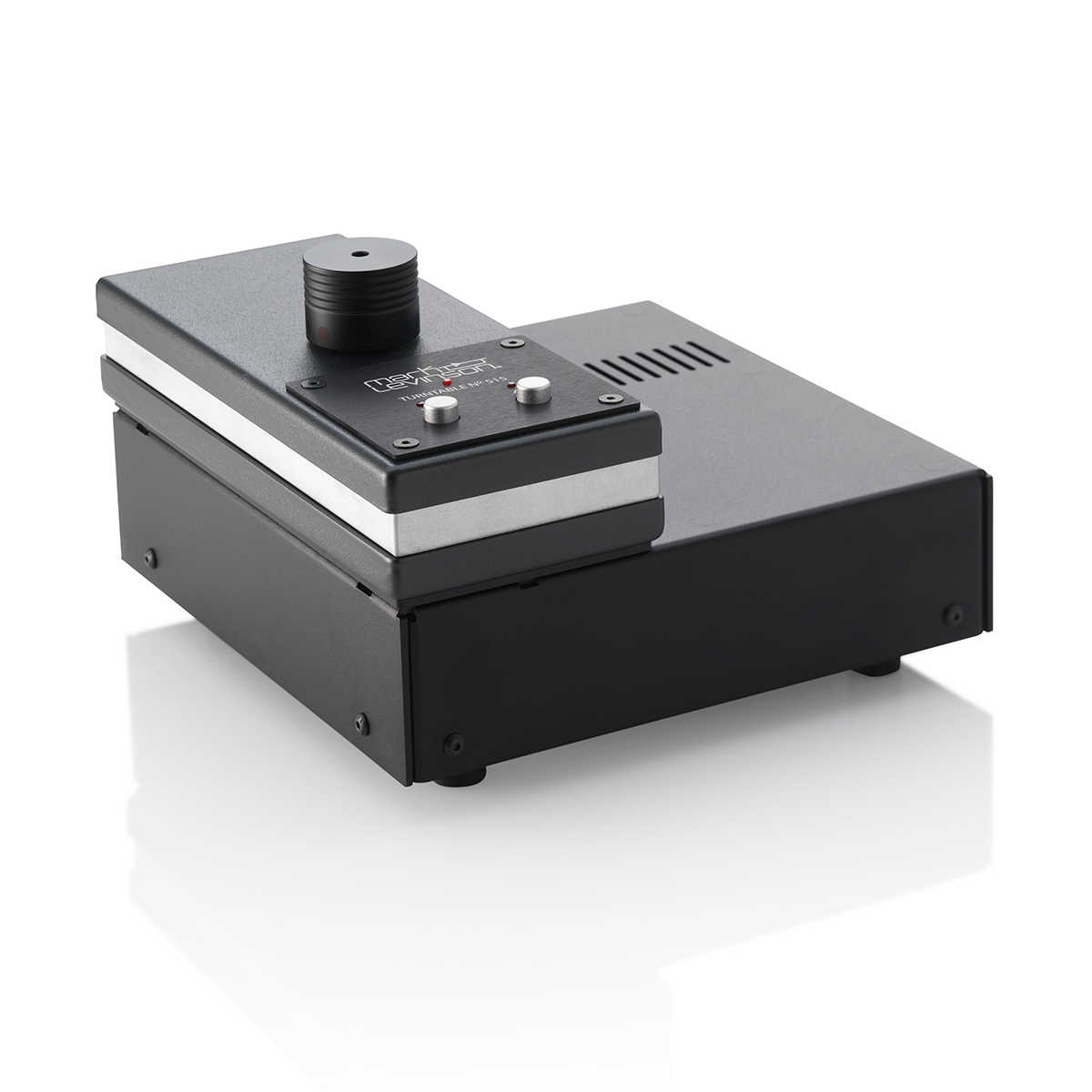

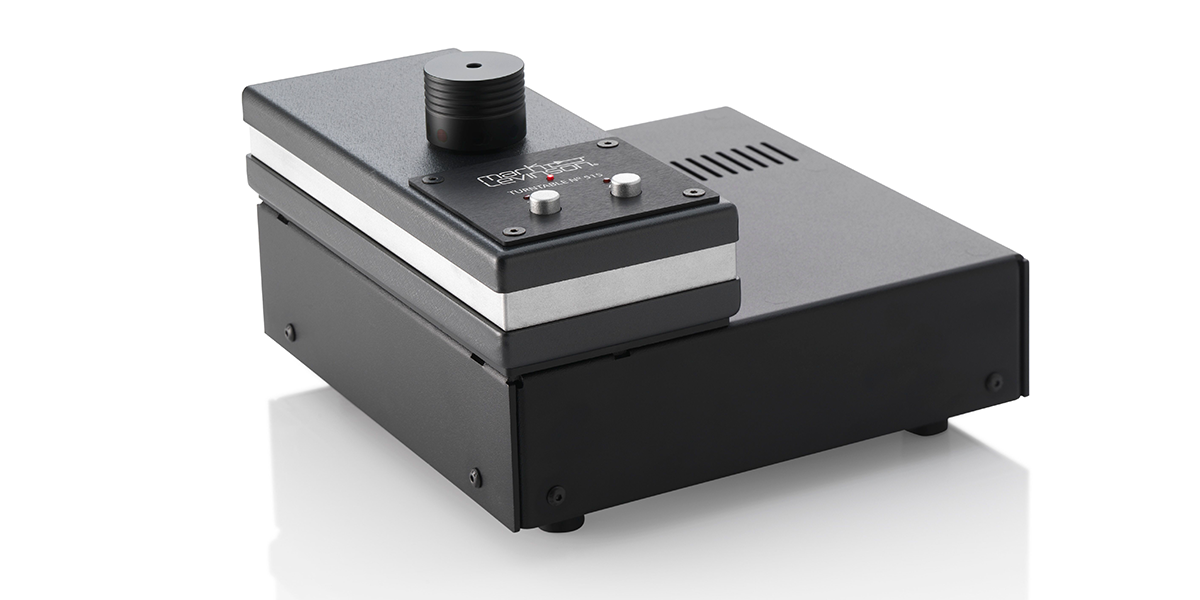

The powerful high torque AC synchronous motor is mounted to a separate vinyl-MDF-Aluminum sandwich chassis and housed in its own mechanically isolated enclosure. A precision-machined pulley and triple belt drive system provide smooth, quiet operation. A custom-designed, low-distortion analog oscillator and discrete, class AB power amplifier deliver pristine power to the synchronous motor for accurate 33 and 45 RPM operation.

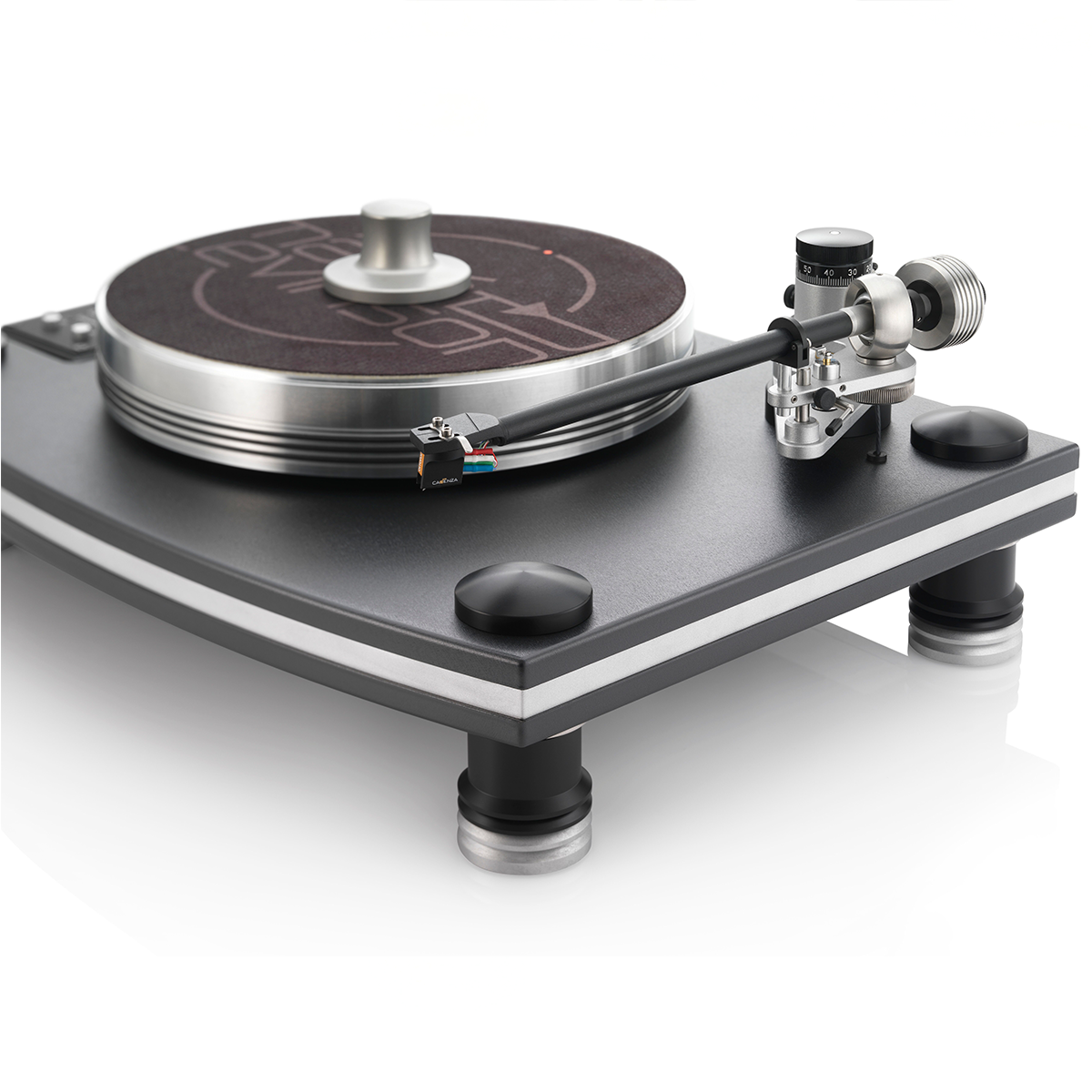

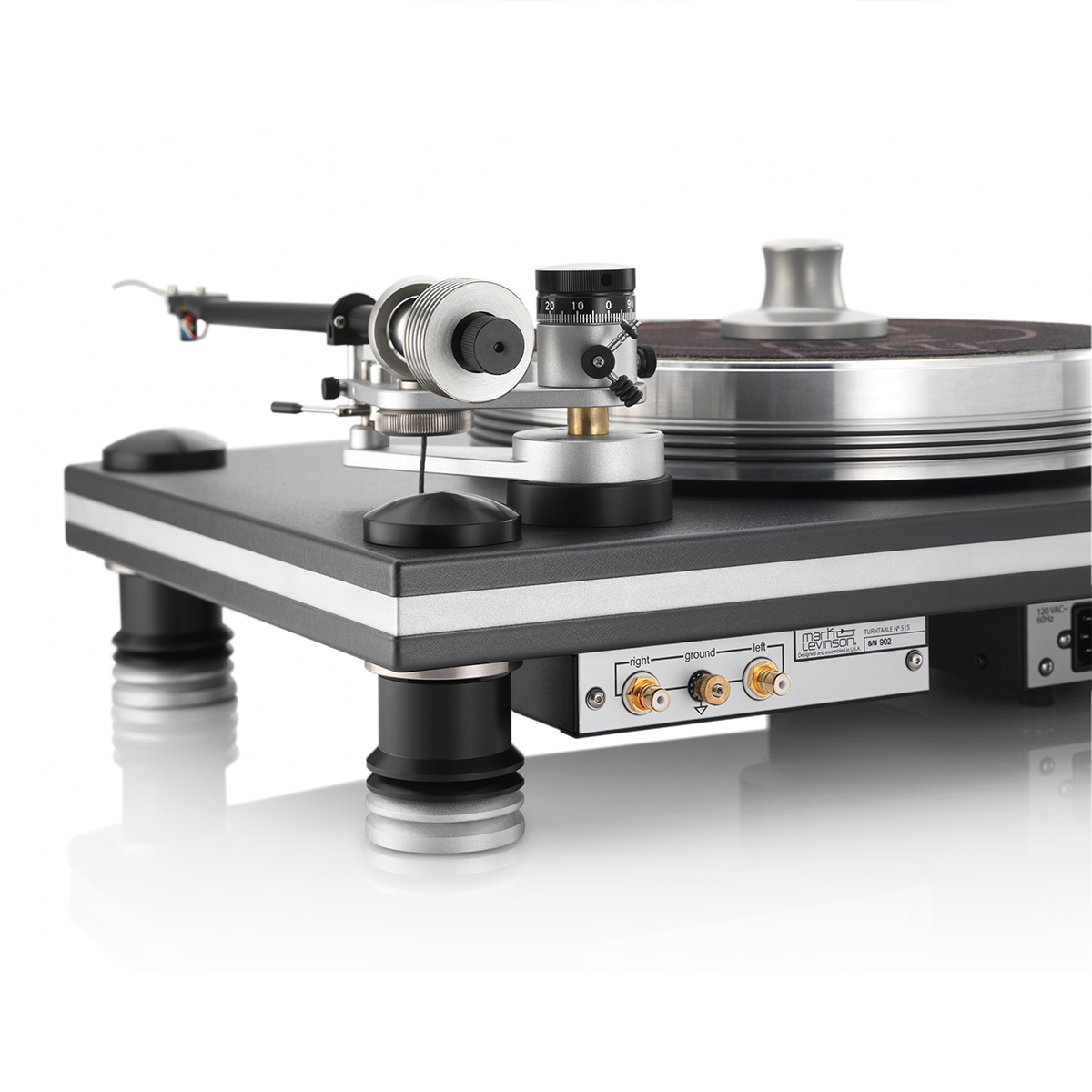

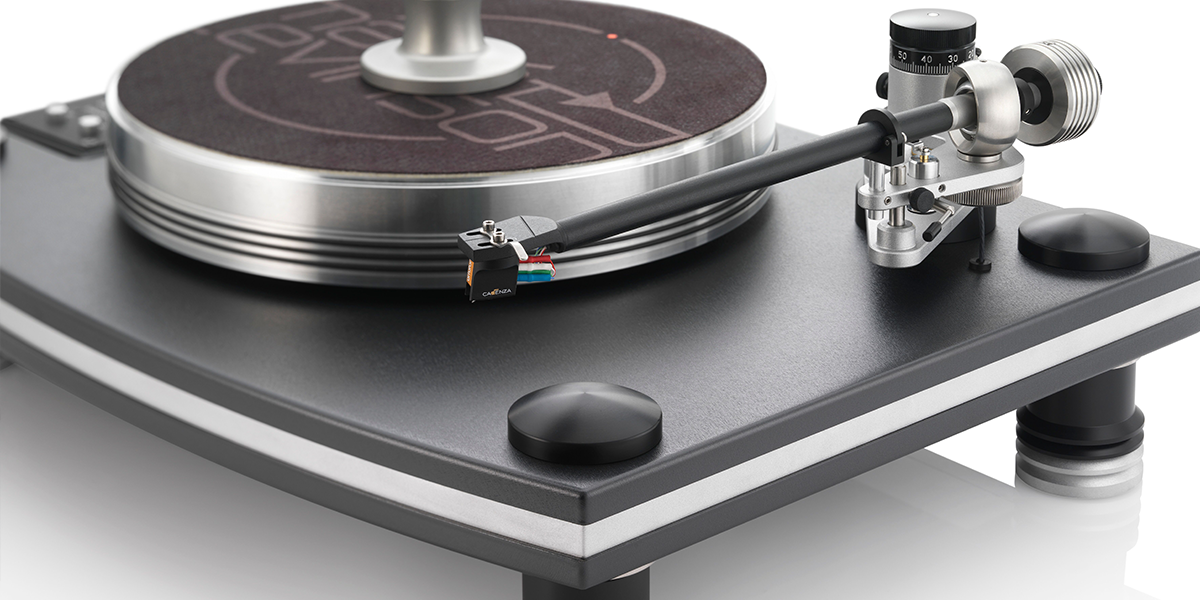

The № 515 features a gimbal-mounted, 3D-printed tonearm with integral headshell, stainless steel counterweight, and discrete internal cartridge lead routing. The tonearm is mounted to a rigid, machined Aluminum arm base featuring on-the-fly adjustable vertical tracking angle. A custom designed stainless steel record weight and platter mat ensure maximum stability of playback.

"The № 515 is being released during a time of rapid growth and resurgence in turntable and vinyl record sales," said Jim Garrett, Director of Marketing and Product Management, HARMAN. “It celebrates our 45th anniversary and provides a first-class analog source for our new 500 Series.”

"This turntable was engineered to be a perfect complement our Pure Phono stage. The warmth, fidelity and overall listening experience delivered by the № 515 absolutely must be heard to be appreciated,” said Todd Eichenbaum, Director of Engineering, HARMAN.
