Mark Levinson
Lượt xem: 15

Trong kho : Còn hàng

Giá bán : 1.450.000.000đ

The ML-50 celebrates the 50th Anniversary of the Mark Levinson brand with an exclusive limited-edition amplifier package delivering reference-class performance together with luxurious design and craftsmanship. A monaural chassis amplifier, the ML-50 showcases Mark Levinson Pure Path design topology with a glass top panel, dramatic internal lighting, and historical design cues inspired by celebrated amplifiers of the brand’s 50- year history. Limited to only 100 amplifier packages globally, the ML-50 is the ultimate expression of power, precision, and purity.

Read More

Liên hệ giá tốt nhất

ML-50

Reference Class Amplifier Performance

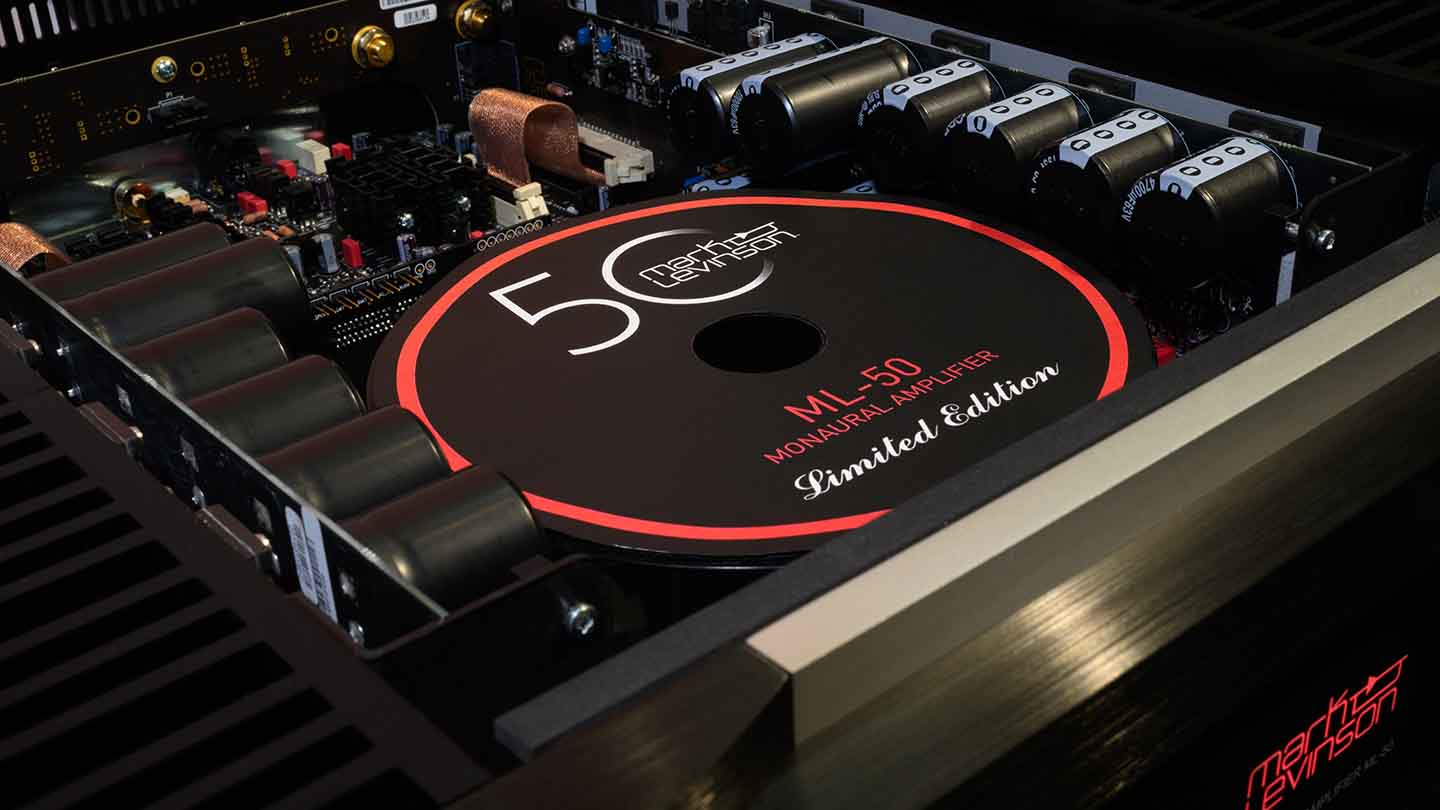

Unleash the full potential of your music as you go from the quietest lows to the loudest crescendos. The ML-50’s toroidal transformer delivers massive power to your speakers. It’s shielded and encapsulated to minimize electrical and mechanical noise, allowing you to focus completely on your music.

Mark Levinson Pure Path Circuit Design
Our proprietary approach to circuit design delivers uncompromising musical purity and an engaging listening experience. By using discrete components carefully selected for their precise function, the ML-50 delivers unmatched sound quality that captures the nuances of every note.

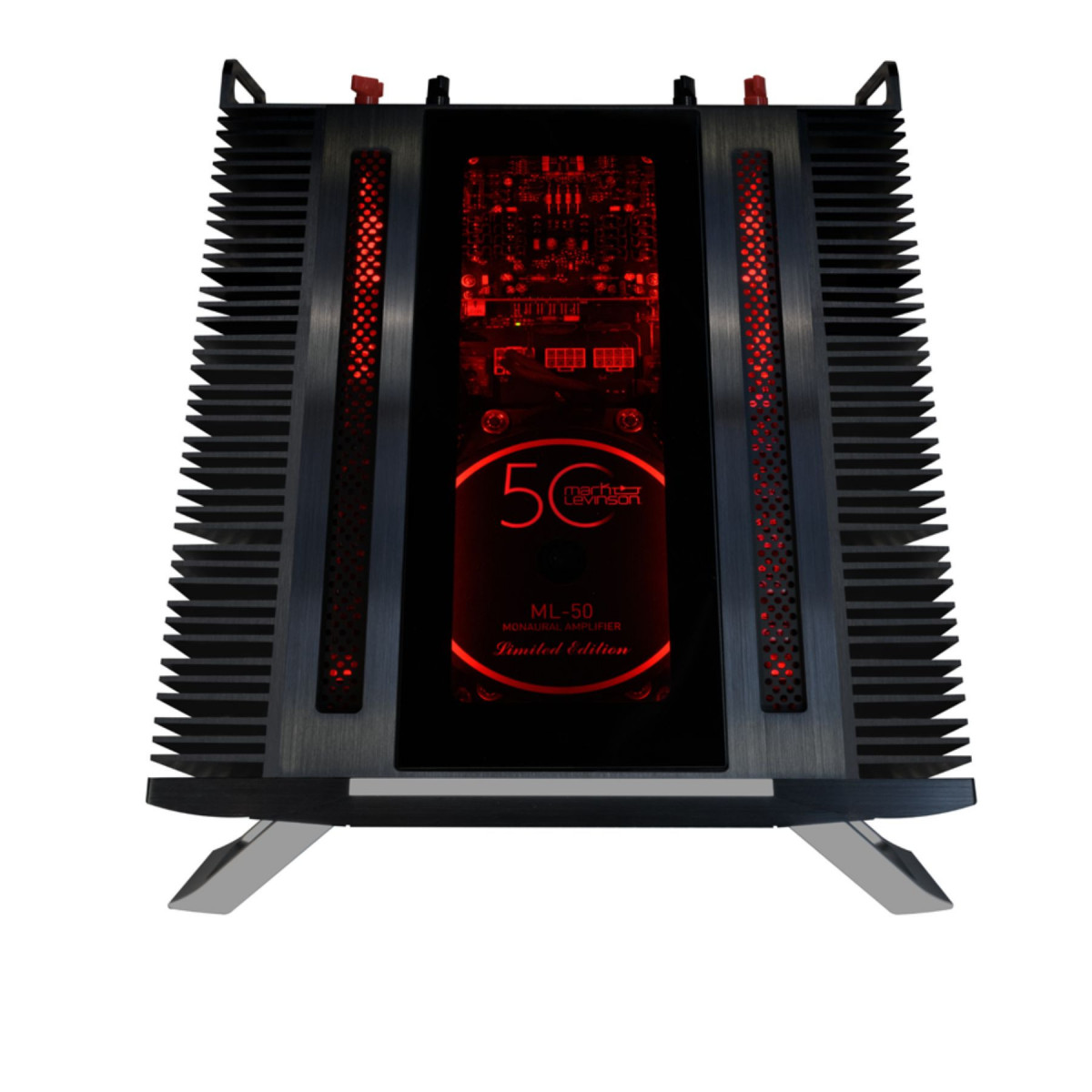

Custom Glass-top and Internal Lighting
One of the striking aspects of the ML-50 is a clear glass top cover supported with soft Mark Levinson red lighting that showcases the internal beauty of the Pure Path circuit designs. The Mark Levinson team optimized the electrical layout of all component circuit boards in painstaking detail. The result is an interior that is simply a work of art visually and electrically.

Fully Balanced Inputs.
As a fully balanced audio design, the ML-50 offers balanced XLR and single-ended RCA audio inputs allowing you to use the ML-50 with virtually any preamplifier or source player.

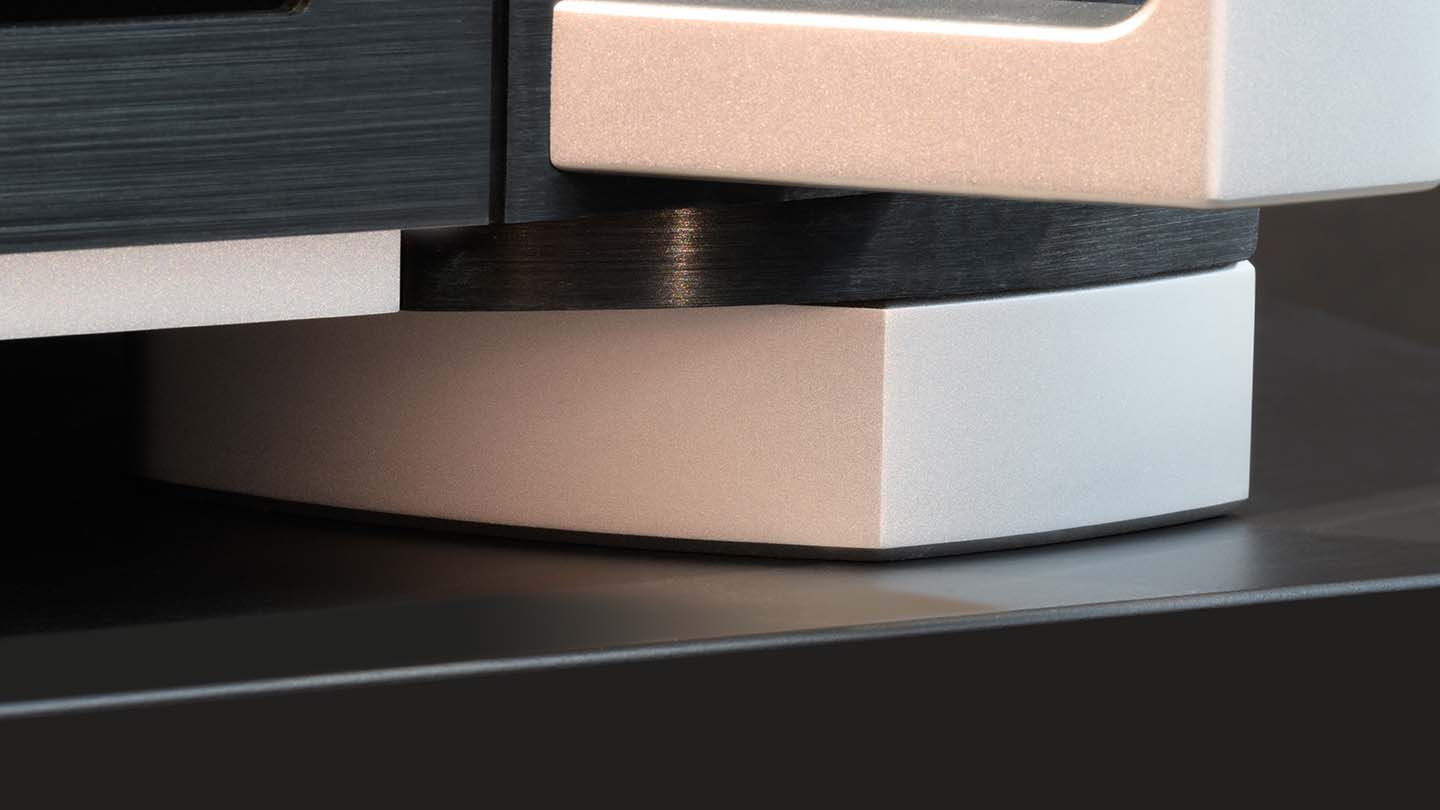

Vibration-damping, Mechanically Isolated Foot Design.
The isolation feet provide the most stable platform possible and deliver increased convection cooling.

Flexible Control Capabilities.
Connect and control the ML-50 through Ethernet, RS232 or 12V trigger input and output.

Designed, Engineered and Assembled in the USA.
The ML-50 was designed and engineered at the Harman Engineering Center of Excellence in Northridge California and built by hand in the United States.

Highlights

- Limited to Only 100 Pairs Globally.
- Sequentially Serialized Pair Numbering and Badging.
- Reference Class Amplifier Performance.
- Mark Levinson Pure Path Circuit Design.
- Custom Glass-top and Internal Lighting.
- Vibration-damping, Mechanically Isolated Foot Design.
- Designed, Engineered and Assembled in the USA.

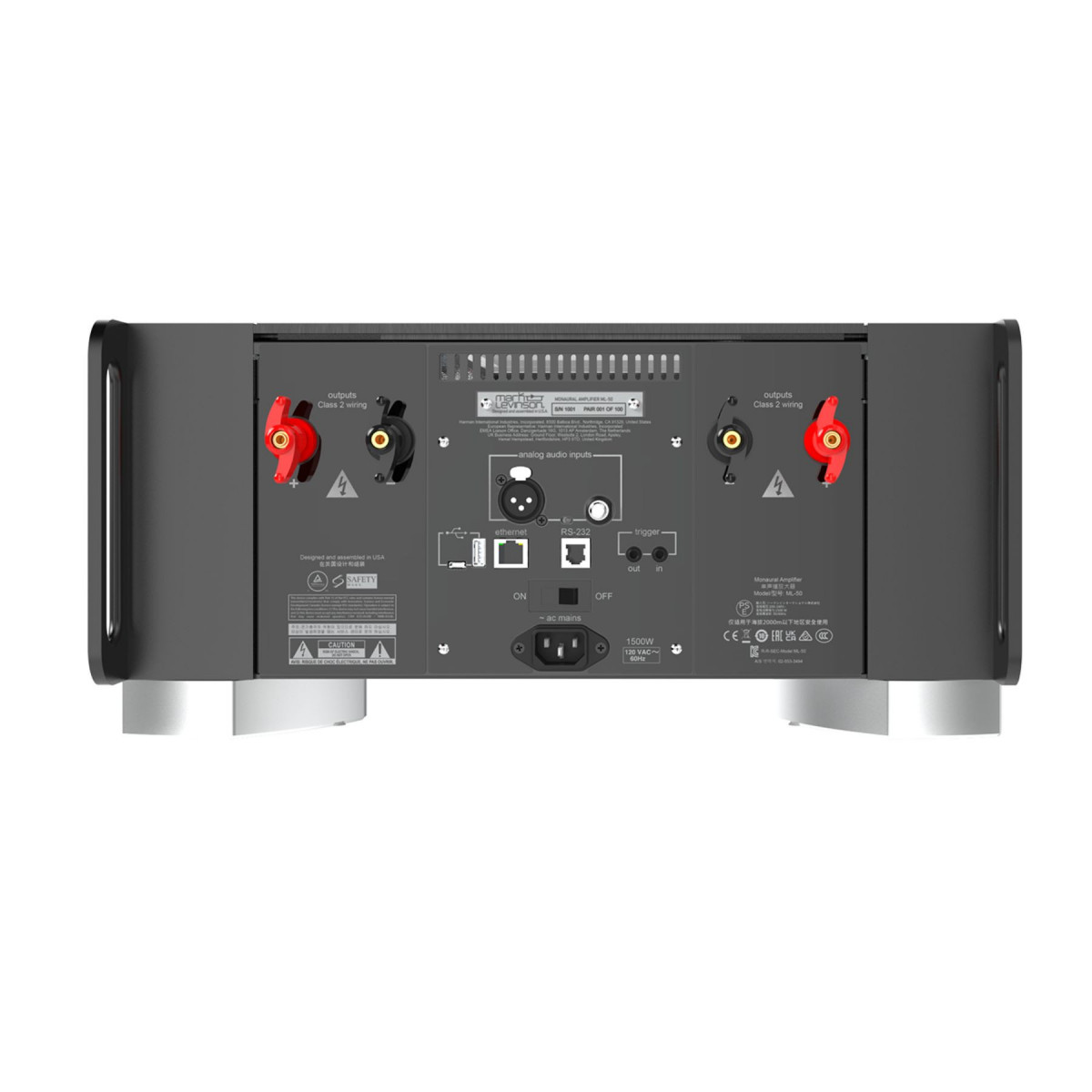

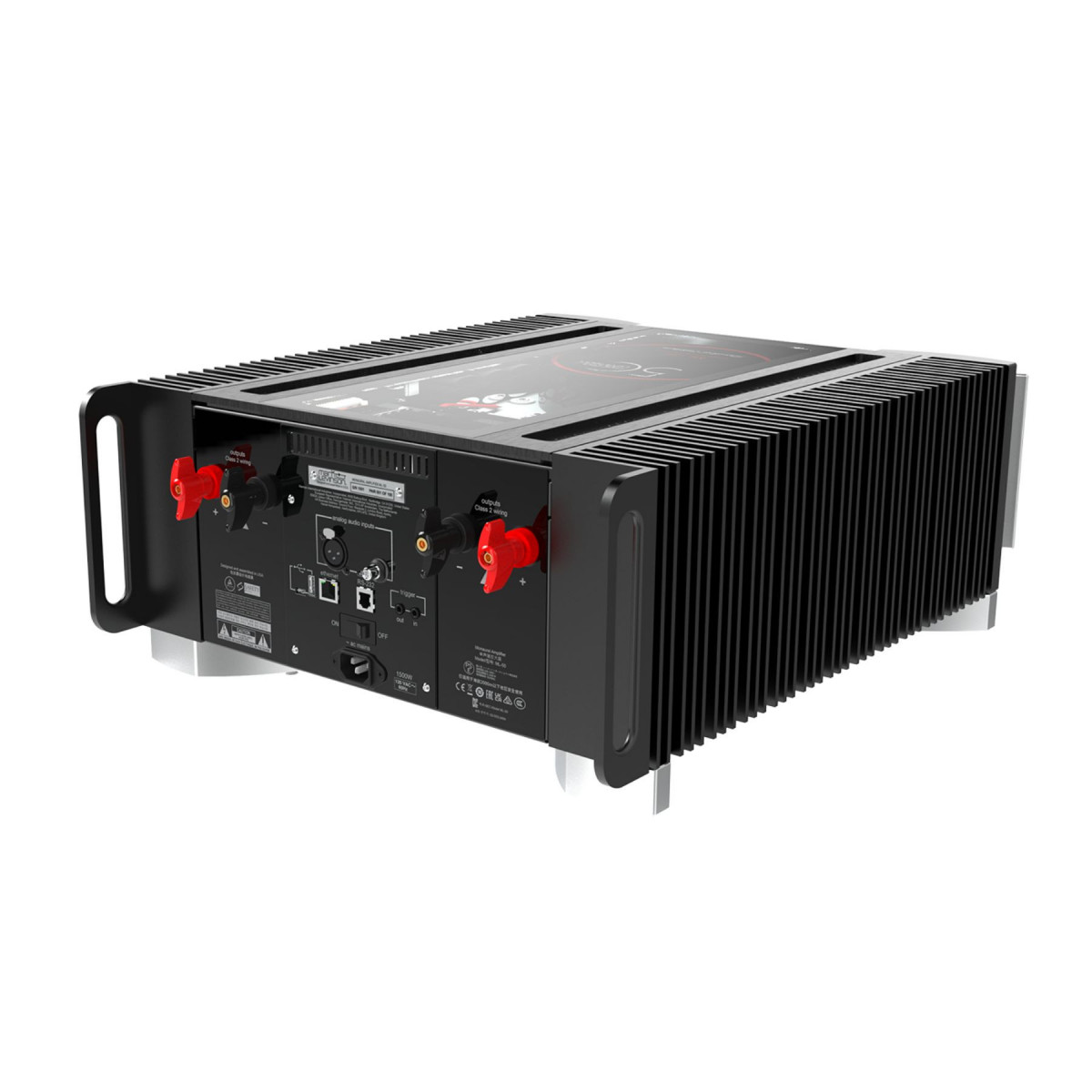

Input & Output Connectors

One balanced XLR input

One unbalanced RCA input

Two pairs of “Mark Levinson Hurricane” loudspeaker output binding posts



Control Connectors

Two, 3.5mm mono (tip/sleeve) mini plug trigger connectors. One input / One output, 3-12Vdc
One Ethernet 10/100 port (system monitoring)
RS-232 (provides serial control)
USB-A (service use)
Micro USB (internal web page discovery)
One 3-pin IEC standard power connector


Rated Output Power

 425W RMS at 8 ohms, 20Hz to 20kHz, at < 0.3% THD
850W RMS at 4 ohms, 20Hz to 20kHz
2 ohm Stable
 Frequency Response  10Hz to 20kHz +0/-0.2dB
 Signal-to-Noise Ratio  >85dB, reference level: 2.83VRMS
 Total Harmonic Distortion  < 0.04% at 1kHz, 425W, 8 ohm load
< 0.3% at 20Hz-20kHz, 425W, 8 ohm load
 Input Impedance  60kΩ (balanced XLR), 30kΩ (unbalanced/single-ended RCA)
 Voltage Gain  26dB
 Input Sensitivity  2.83VRMS output at 142mVRMS input
 Power Requirements  100V~, 120V~, 230V~, factory set for destination country, 1,500W
 Power Consumption  On, idle: 560W
Standby Options:
Normal Standby: 65W
Power Save Standby: 5W
Green Standby: < 0.5W
 Dimensions (H x W x D)  7.75" x 17.25" x 20.97" (197mm x 438mm x 533mm)
 Weight  115 lbs (52.2 kg) Net
122 lbs (55.3 kg) Shipping
 Documents & Downloads  The latest owner's manuals, quick start guides, and documents.
