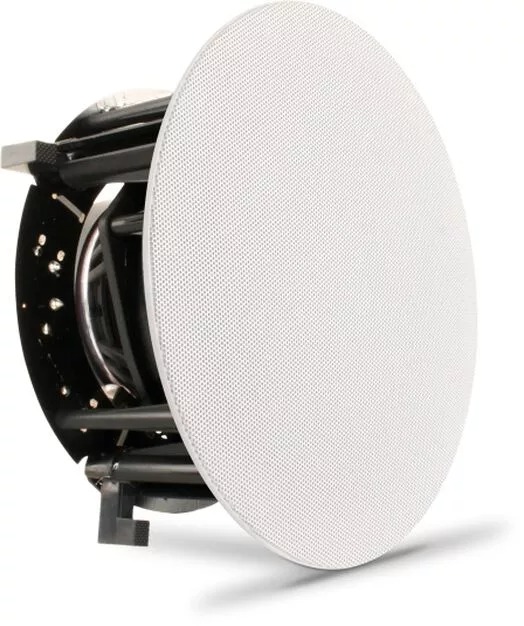

6 ½" In-Ceiling Loudspeaker Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves.

Read More

Đại lý bán Mua ngay
Liên hệ giá tốt nhất

C763

Revel in-ceiling loudspeakers draw upon the same research, resources, and unique perspectives that put all our loudspeakers in a class by themselves. Each model offers a standard-setting low sonic coloration and freedom from distortion over a wide dynamic range.



C763 Highlights

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion

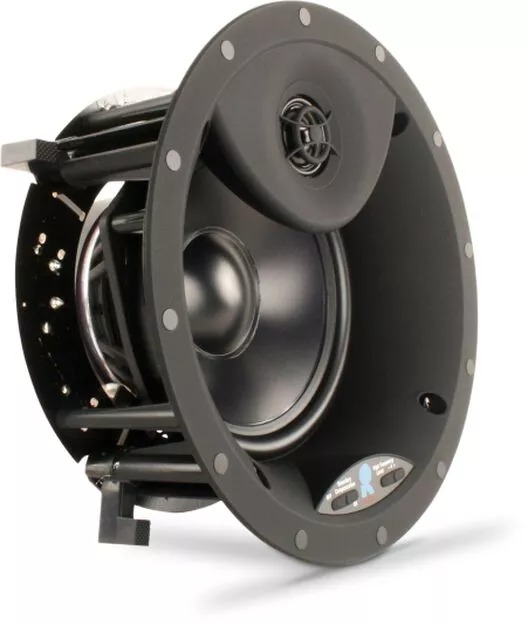

  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis

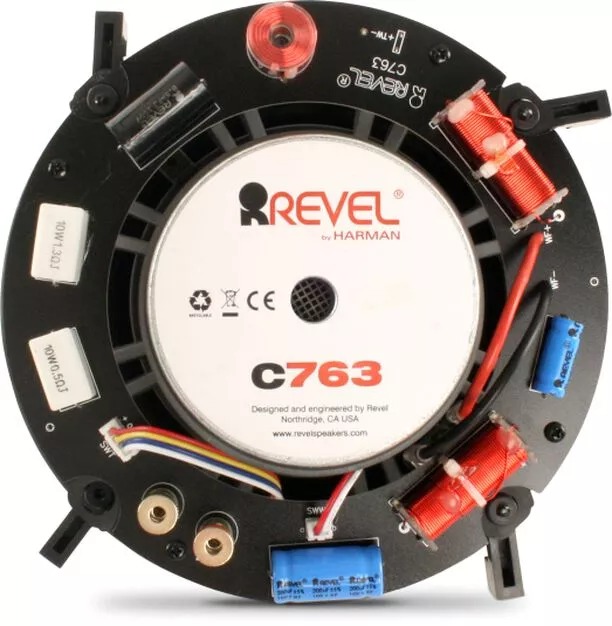

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
  • Boundary compensation switch (C783/C763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near a wall
  • Three-position tweeter level control (C783/C763/C583/C563) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles



Specification

Height Cutout dimensions (dia.) 8" (20.3 cm) Square grille finished Height 9.1" (23.1 cm)
Width Square grille finished Width 9.1" (23.1 cm)
Depth Mounting depth 4.9" (12.5 cm)
Weight 2.4 lb (1.1 kg) / Shipping weight 3.2 lb (1.5 kg)
Features Includes both round and square zero-bezel magnetic grilles • Round grille finished dimension (dia.) 9.1" (23.1 cm)
High Frequency Driver Components 1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency Extension High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation
Mounting C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
Recommended Amplifier Power 10 - 140 Watts RMS
