Lượt xem: 329
Trong kho : Còn hàng
Bảo hành : 12 tháng
Giá bán : 9.900.000đ

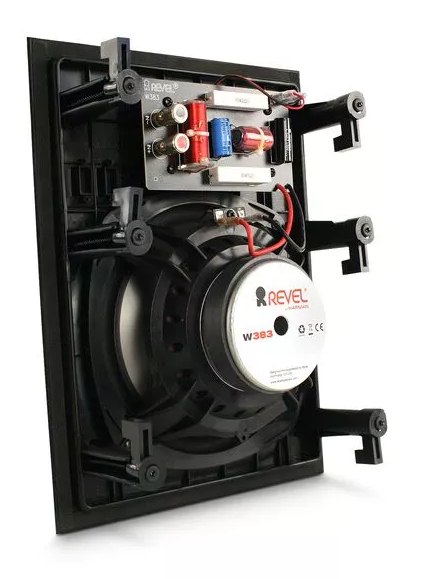

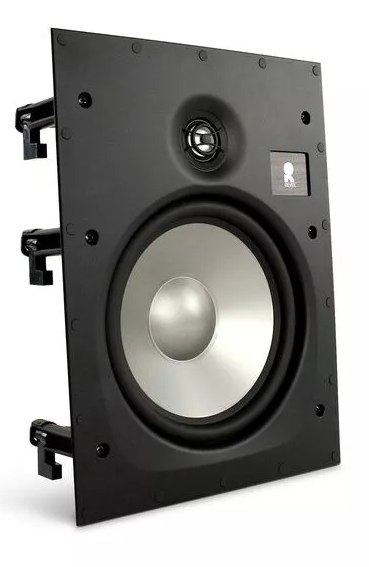

8" In-Wall Loudspeaker This entirely new range of in-wall loudspeakers combines Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek look that integrates easily into any décor.
Liên hệ giá tốt nhất
W383
This entirely new range of in-wall loudspeakers combines Revel’s best-in-class acoustics with a patented tool-less installation mechanism and a sleek look that integrates easily into any décor.
W383 Highlights
-
Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion
-
1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis
-

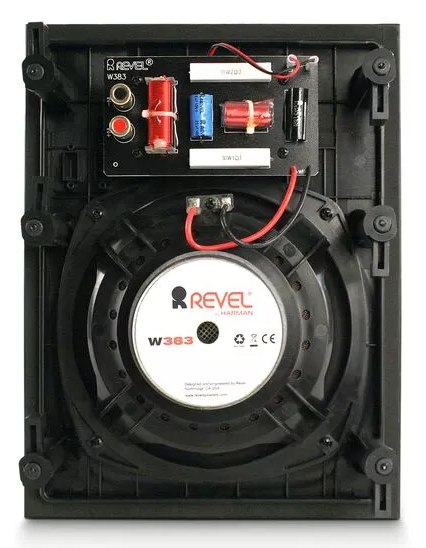

High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction
-
Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling
-
Three-position tweeter level control (W893/W873/W783/W763/W583/W563/W553L) lets you adjust for optimum response in a variety of acoustical environments, or for using the speakers without grilles
Specifications
| Depth | Mounting depth 3.7" (9.4 cm) |
| Weight | 4.9 lb (2.2 kg) / Shipping weight 6.3 lb (2.9 kg) |
| Features | Cutout dimensions (H x W) 11.9" x 8.9" (30.3 cm x 22.7 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 12.9" x 9.9" (32.8 cm x 25.2 cm) |
| High Frequency Driver Components | 1" aluminum dome swiveling tweeter with waveguide |
| Low Frequency Driver Components | 8" Micro-Ceramic Composite (MCC) Cone, Cast-Polymer Frame Woofer |
| Mounting | C-2 mounting mechanism • Compatible with wall material thickness range 0.5" – 1.0" (1.3 cm – 2.5 cm) |
| Recommended Amplifier Power | 10 - 125 Watts RMS |
Đang cập nhật hướng dẫn ....!
