Revel
Lượt xem: 446

Trong kho : Còn hàng

Bảo hành : 12 tháng

Giá bán : 22.500.000đ

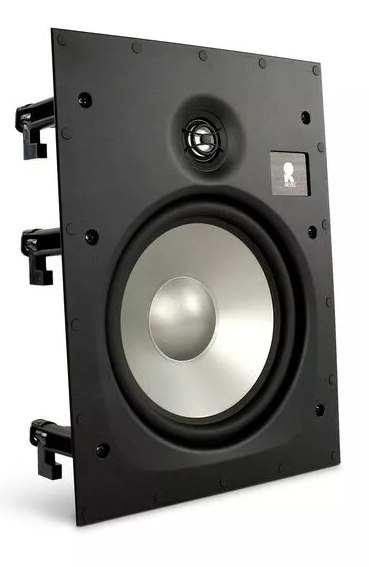

7" In-Wall Loudspeaker Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves.

Read More

Đại lý bán Mua ngay
Liên hệ giá tốt nhất

W873

Since the first Revel speakers in 1996, Revel products have stood at the forefront of loudspeaker design and performance. Revel in-wall loudspeakers draw upon the same research, resources and unique perspective that put all Revel loudspeakers in a class by themselves. Revel in-wall loudspeakers provide unparalleled value and are known for their standard-setting low sonic coloration and their freedom from distortion over an extraordinarily wide dynamic range.



W873 Highlights

  • Long-throw woofers with cast frames and rubber surrounds provide high output with low distortion.
  • 1-inch (25mm) angle-adjustable, metal-dome tweeter with an integrated waveguide provides optimized response both on and off axis.

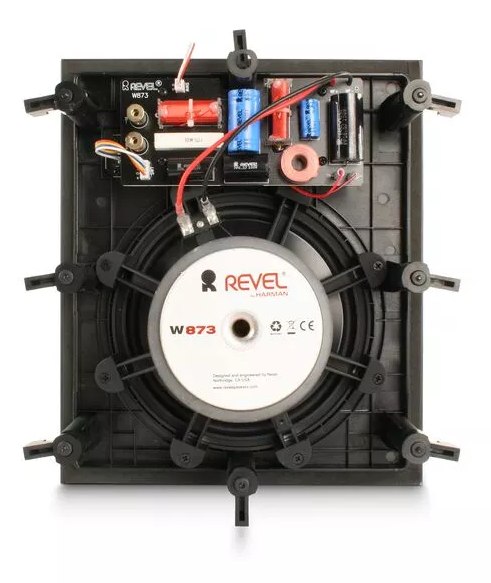

  • High-order crossover network with premium-quality components delivers extraordinarily accurate timbre reproduction.
  • Boundary compensation switch (W893/W873/W783/W763) lets you adjust the speaker to maintain tonal accuracy when the speaker is placed near an additional wall or the ceiling.



Specifications

Depth Mounting depth 3.7" (9.4 cm)
Weight 7.5 lb (3.4 kg) / Shipping weight 9.0 lb (4.1 kg)
Crossover Frequencies Advanced high-order crossover network

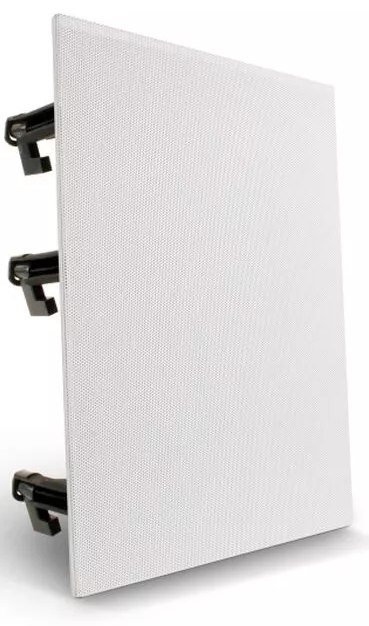

Features Cutout dimensions (H x W) 12.1" x 10.2" (30.6 cm x 25.9 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 13.0" x 11.1" (33.0 cm x 28.2 cm)
High Frequency Driver Components 1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency Extension High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation
Low Frequency Driver Components 7" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
Mounting C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
Recommended Amplifier Power 10 - 150 Watts RMS
Audio Specifications
Depth Mounting depth 3.7" (9.4 cm)
Weight 7.5 lb (3.4 kg) / Shipping weight 9.0 lb (4.1 kg)
Crossover Frequencies Advanced high-order crossover network
Features Cutout dimensions (H x W) 12.1" x 10.2" (30.6 cm x 25.9 cm) • Includes zero-bezel magnetic grille • Grille finished dimension (H x W) 13.0" x 11.1" (33.0 cm x 28.2 cm)
High Frequency Driver Components 1" aluminum dome swiveling high-output tweeter with waveguide
Low Frequency Extension High Frequency Extension 3-position HF level control / Low Frequency Extension LF boundary compensation
Low Frequency Driver Components 7" Micro-Ceramic Composite (MCC) Cone, Cast-Aluminum Frame High-Output Woofer
Mounting C-2 fastening mechanism • Compatible with wall material thickness range 0.5" – 2.0" (1.3 cm – 5.0 cm)
Recommended Amplifier Power 10 - 150 Watts RMS





Đang cập nhật hướng dẫn ....!
